It really comes down to a simple trade-off: UDP (User Datagram Protocol) is all about speed, while TCP (Transmission Control Protocol) is built for reliability. Deciding between a UDP vs TCP VPN connection depends entirely on what you're doing—are you trying to stream a 4K movie, or are you downloading a sensitive file?
UDP vs. TCP: What's Actually Happening in Your VPN Tunnel?
When you fire up your VPN, it creates a secure tunnel for your data. UDP and TCP are the protocols that act like delivery drivers, deciding how your data gets shipped through that tunnel. They both get the job done, but their methods couldn't be more different, and that has a huge impact on your connection.
Let’s break it down with an analogy:
- UDP is like sending a postcard. You scribble a message, drop it in the mail, and hope for the best. It’s incredibly fast and efficient because there's no extra baggage. But there’s no delivery confirmation, no tracking, and if it gets lost in transit, it’s just gone.
- TCP is like sending a registered package via FedEx. Before anything is sent, the sender and receiver confirm they’re ready. Every single piece of the package is numbered, tracked, and its arrival is confirmed. If a piece goes missing, a request is sent to mail it again. It’s slower, but you have a guarantee it will all get there, and in the right order.
This core difference is everything. It’s why one protocol is perfect for gaming and the other is essential for secure browsing.
The Technical Nitty-Gritty
Digging a little deeper, the difference is in their core design. UDP is what’s known as a "connectionless" protocol. You could call it a “fire-and-forget” system. It slices your data into packets (called datagrams) and just sends them out without setting up a formal connection or waiting for a "got it!" signal. This lean approach means less overhead—a UDP packet header is a tiny 8 bytes compared to TCP's 20 bytes.
TCP, on the other hand, is "connection-oriented." It’s a micromanager, overseeing the entire data transfer process. This includes:
- The Handshake: It performs a "three-way handshake" to make sure both your device and the server are ready before any data is sent.
- Packet Sequencing: Every packet gets a number, so they can be put back together in the correct order on the other side.
- Error Correction: It waits for confirmation that each packet arrived safely. If one gets lost or corrupted, it sends it again.
The bottom line: The UDP vs. TCP choice is a strategic one between raw speed and absolute certainty. UDP is for when you need low latency above all else, while TCP is for when every single bit of data has to arrive perfectly, even if it adds a bit of lag.
This is why most VPN providers, including us at Tegant, often default to UDP for general use. But we always provide TCP as a crucial fallback for specific situations where reliability is king.
How They Stack Up Head-to-Head
To really see where each one shines, let's put their key traits side-by-side. This table cuts through the noise and shows you how each protocol handles the fundamentals of moving your data through a VPN.
| Feature | UDP (User Datagram Protocol) | TCP (Transmission Control Protocol) |
|---|---|---|
| Connection Type | Connectionless (fire-and-forget) | Connection-Oriented (requires handshake) |
| Speed & Latency | Much Faster with lower latency | Slower with higher latency |
| Reliability | Unreliable; no delivery guarantee | Extremely Reliable; guarantees delivery |
| Data Ordering | Packets can arrive out of order | Guarantees packets arrive in order |
| Error Checking | Minimal (basic check) | Robust error-checking & retransmission |
| Overhead | Low (8-byte header) | High (20-byte header) |
| Best For | Gaming, streaming, VoIP (speed matters) | Downloads, browsing, email (accuracy matters) |
Getting a handle on these differences is the first real step to customizing your VPN connection for exactly what you need to do online.
Comparing UDP vs TCP VPN Performance Metrics
To really get to the bottom of the UDP vs TCP debate, we need to look past the technical specs and see how they actually perform in the real world. Metrics like speed, latency, and reliability aren't just numbers on a page; they directly impact how smooth your Netflix stream is, how lag-free your gaming session feels, and whether your connection holds up when you need it most.
It’s a classic trade-off: speed versus certainty.
Think of it like this: UDP is the nimble sports car—built for raw speed and agility but offers no guarantees. TCP, on the other hand, is the armored truck—slower and a bit clunky, but it makes damn sure every single piece of its cargo arrives safely and in the right order.

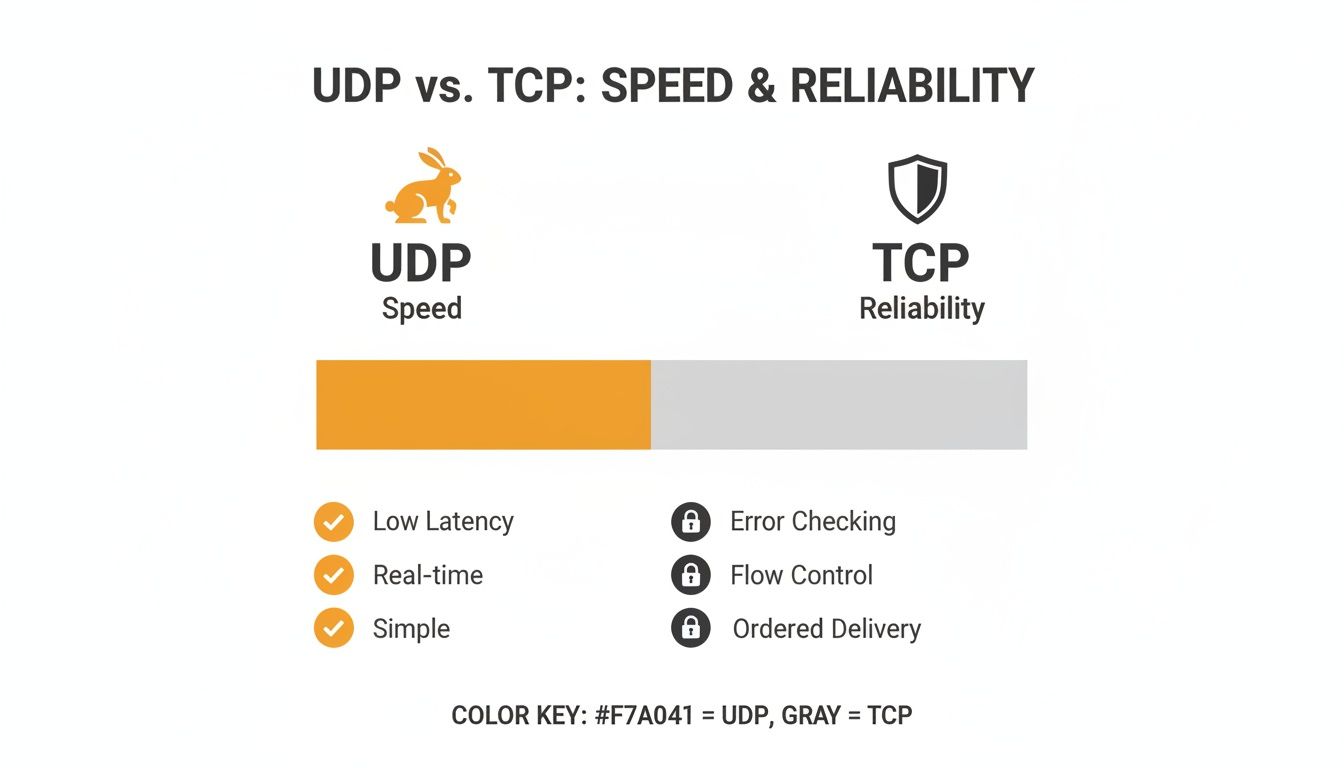

This visual captures that core difference perfectly, contrasting UDP's need for speed with TCP's focus on reliability.
The hare (UDP) is all about getting there fast, while the shield (TCP) represents a promise that the data will arrive intact, no matter what.
Raw Connection Speed
When it comes to pure, unadulterated throughput, UDP almost always takes the crown. Its "fire-and-forget" approach means it sends data without waiting for confirmation, which slashes communication delays. This lack of conversational overhead lets it shove more data through the VPN tunnel in less time.
TCP, conversely, has to perform a three-way handshake just to start a connection and then requires constant acknowledgments for every packet. All that back-and-forth adds up, making it noticeably slower, especially on networks with high latency.
UDP consistently demolishes TCP in speed tests. A big reason is the overhead: UDP’s header is just 8 bytes, while TCP’s is a heftier 20 bytes. That 60% reduction in overhead means packets can be processed up to 2-3 times faster, especially over long-haul connections. CyberGhost VPN notes that for common activities like browsing, 4K streaming, and online calls, UDP is often 50-100% faster than TCP. That's why they default to it for protocols like WireGuard and OpenVPN, which serve over 10 million users.
Latency and Jitter
Latency—what gamers call "ping"—is the round-trip time for a data packet to travel from your device to a server and back. For anything real-time, like a competitive match of Call of Duty or a Zoom call, low latency is everything.
UDP is the star here. By ditching the error-checking and retransmission steps, it delivers packets with almost no delay. The result is a much more responsive, fluid experience.
TCP's reliability features, while great for data integrity, come at the cost of higher latency. If a packet gets lost, TCP literally pauses the data stream to ask for it again. This creates noticeable lag and "jitter" (the variation in latency), which can completely ruin an online game or turn a video call into a stuttering mess.
This is just one piece of the puzzle, of course. For a deeper dive, check out our complete VPN protocol comparison.
Reliability and Data Integrity
This is where TCP earns its keep and justifies its slower pace. It was built from the ground up to guarantee that every single byte of data you send arrives at its destination, intact and in the correct order.
It pulls this off with a few key mechanisms:
- Error Checking: Verifies packets haven't been corrupted along the way.
- Packet Sequencing: Numbers packets so they can be reassembled correctly on the other end.
- Retransmission: If a packet is lost or damaged, TCP requests a new copy.
UDP offers none of these assurances. It just sends the packets and hopes for the best. For something like streaming video, a few lost packets might cause a split-second of pixelation but won't stop the show. But for a file download, a single lost packet could corrupt the entire file, making it useless.
Data Overhead Comparison
Overhead is the extra data tacked onto your content just to manage the connection. The less overhead, the more efficient the connection, as more of your bandwidth is used for the stuff you actually care about.
The difference is stark:
- UDP Header: A tiny 8 bytes.
- TCP Header: A much larger 20 bytes, not including all the extra data for acknowledgments and flow control.
While this might seem small, it adds up incredibly fast over millions of packets. This extra baggage is a major contributor to TCP's slower overall performance.
To make this crystal clear, here’s a quick side-by-side breakdown of how these two protocols stack up in a VPN context.
UDP vs TCP for VPNs Feature Breakdown
| Feature | UDP (User Datagram Protocol) | TCP (Transmission Control Protocol) |
|---|---|---|
| Speed & Throughput | Higher. Less overhead and no acknowledgments mean faster data transfer. | Lower. Handshakes and retransmissions introduce delays, reducing speed. |
| Latency (Ping) | Very Low. Perfect for gaming, VoIP, and real-time activities. | Higher. Error correction and packet ordering create significant lag. |
| Reliability | Low. No guarantee of delivery or packet order. Packets can be lost. | Very High. Guarantees 100% data delivery in the correct sequence. |
| Overhead | Minimal (8-byte header). More bandwidth is dedicated to your actual data. | High (20-byte header). More bandwidth is used just for managing the connection. |
Ultimately, the choice comes down to what you're doing. For speed-sensitive tasks where a dropped packet isn't the end of the world, UDP is your best bet. But for anything requiring perfect data integrity, TCP's reliability is non-negotiable.

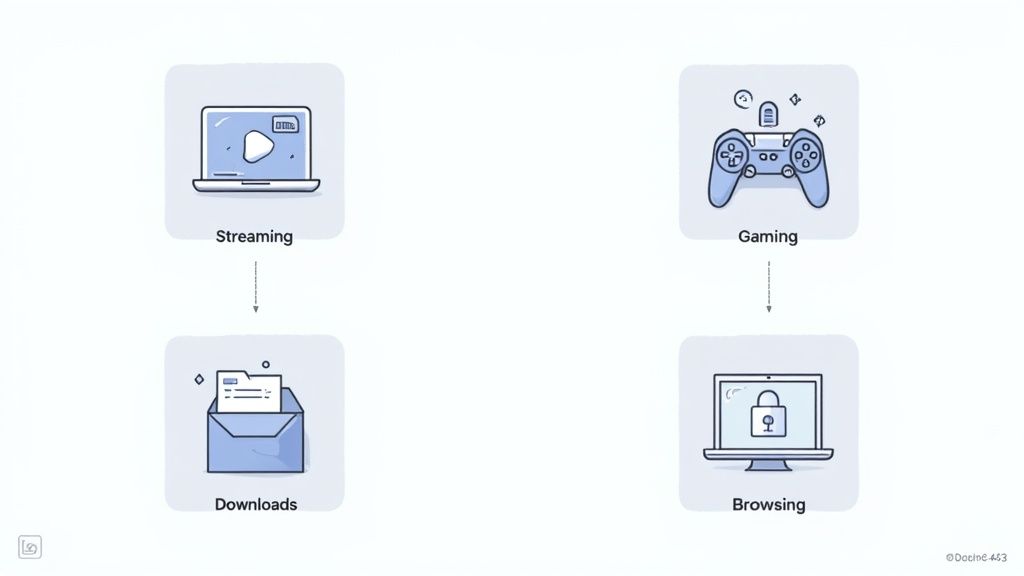

Choosing Your Protocol for Real-World Scenarios
All the technical talk about protocols doesn't mean much until you apply it. This is where the whole "UDP vs. TCP VPN" debate actually impacts your day-to-day internet use. The right choice depends entirely on what you’re trying to do.
Think of it this way: one protocol is a sprinter, built for raw speed, while the other is a meticulous accountant, ensuring every last bit of data is perfect. Let's break down which one to use for common situations.
Streaming Media and Live Broadcasts
When you’re settling in to watch Netflix, BBC iPlayer, or a live stream on YouTube, the last thing you want is that spinning buffer wheel. For streaming, speed is king, and that's a clear win for UDP.
UDP’s "fire-and-forget" approach is perfect for video. It shoves packets of data your way as fast as it can, without stopping to ask if every single one arrived. If a packet gets lost, you might see a single pixelated frame or a momentary flicker you won't even notice. The show goes on.
Trying to stream over TCP, on the other hand, is a recipe for frustration. Its error-checking obsession becomes a massive bottleneck. Lose one packet, and TCP slams on the brakes, halts the video, and demands a resend. That entire process is what you experience as buffering.
The Recommendation: Use UDP. Its low-overhead design is built for a smooth, continuous flow of data. For watching video, TCP’s reliability is more of a bug than a feature.
Competitive Online Gaming and VoIP Calls
For anyone playing a competitive online game or hopping on a WhatsApp call, the most critical number on your screen is latency (or "ping"). Low latency means your actions happen instantly. High latency is that infuriating lag where your character gets taken out before you can even react.
Again, UDP is the undisputed champion here. It blasts your game data—your movements, your shots, your location—across the internet with zero delay. There's simply no time for handshakes or confirming every packet.
Using TCP for a fast-paced game would be a disaster. The constant back-and-forth chatter to verify packets would introduce game-breaking lag. In gaming, it's far better to get slightly imperfect data right now than perfect data a second too late.
Downloading Large Files and Secure Browsing
Now, let's flip the script. When you’re downloading a software update, pulling a critical file from the cloud, or logging into your bank, data integrity is everything. A single corrupted bit could make a file unusable or compromise a secure transaction.
This is TCP’s time to shine. It's the only reliable choice for these tasks, thanks to its built-in safety nets:
- Error-Checking: Verifies that the data hasn't been corrupted on its journey.
- Packet Sequencing: Makes sure every piece of the file is reassembled in the correct order.
- Retransmission: If a packet goes missing, TCP automatically requests it again until the file is 100% complete and perfect.
Sure, UDP might transfer the file faster in theory, but it offers zero guarantees. You could end up with a corrupt, useless file, making the speed advantage completely pointless.
While we're focused on protocols, a general guide to VPN for remote work can provide a broader look at strategies where this kind of data integrity is non-negotiable.
Bypassing Restrictive Firewalls
Here’s a scenario where the choice isn't about performance but about access. In places like corporate offices, universities, or countries with heavy censorship, network admins often block most VPN traffic. But one port they almost never block is TCP port 443—the port used for all standard, secure HTTPS web traffic.
This makes TCP a powerful tool for stealth. By running your VPN over TCP on port 443, you can disguise your connection as regular web browsing. To the firewall, your encrypted VPN data looks just like someone visiting a secure website, so it lets it pass right through. This is the core principle behind many of Tegant’s advanced obfuscation features.
UDP, in this context, sticks out like a sore thumb. Its traffic patterns are easily spotted and blocked by systems that use deep packet inspection. When you just need to get online, TCP is your key to unlocking the network.
How TCP Enhances Reliability and Bypasses Network Blocks
While UDP gets all the attention for its raw speed, TCP’s strengths in reliability and bypassing network blocks are absolutely essential in many real-world scenarios. Its methodical, connection-first approach makes it more than just a transport protocol; it’s a powerful tool for guaranteeing data integrity and keeping the internet open.
Think of TCP as the armored truck of data transport. It operates on a principle of absolute certainty, making sure every single packet of your data arrives intact and in the right order. This isn't just a nice-to-have feature—it’s a fundamental promise that makes TCP non-negotiable for high-stakes online activities.
The Foundation of Guaranteed Data Delivery
TCP's rock-solid reliability comes from a multi-step process that leaves nothing to chance. Unlike UDP’s "fire-and-forget" method, TCP meticulously manages the entire data transfer from beginning to end.
This process relies on a few key mechanisms:
- Three-Way Handshake: Before a single byte of data is sent, TCP establishes a formal connection between your device and the server, confirming both are ready to talk.
- Packet Sequencing: Every packet gets a number. This allows the receiving end to reassemble everything in the exact original order, which is critical for preventing file corruption.
- Error Checking and Retransmission: For every packet sent, TCP waits for an acknowledgment (ACK). If a packet gets lost or arrives corrupted, it's automatically resent until it gets there perfectly.
This obsessive attention to detail makes TCP the only real choice for tasks where even a single lost bit of data would be a disaster. Think about downloading a critical software update, accessing your online bank account, or sending a business-critical file—these are moments that demand the perfection only TCP can deliver.
Bypassing Firewalls with TCP Stealth Tactics
Beyond its reliability, TCP has another powerful trick up its sleeve in a VPN context: bypassing network censorship. Many restrictive networks—like those in corporate offices, universities, or countries with heavy internet filtering—use sophisticated firewalls to hunt down and block VPN traffic.
These firewalls are great at identifying and blocking common VPN ports and protocols. But they almost never block TCP port 443. Why? Because it’s the universal standard for HTTPS, the secure protocol that protects virtually all modern web traffic, from a simple Google search to your online shopping cart.
By telling your VPN to use TCP over port 443, your encrypted VPN traffic gets dressed up to look like standard, everyday HTTPS traffic. To the network's firewall, it's indistinguishable from you just browsing a secure website. This clever camouflage lets your connection slip right past inspection systems that would otherwise shut it down.
This technique is especially crucial for beating systems that use deep packet inspection (DPI), a method firewalls employ to analyze the actual content of your data traffic. By mimicking HTTPS, TCP makes it significantly harder for these systems to flag and block your VPN connection.
You can learn more about how this technology works by reading our detailed guide on deep packet inspection.
When to Prioritize TCP for Your VPN
Reliability is where TCP really shines for VPNs, guaranteeing 100% packet delivery for critical tasks. Unlike UDP, TCP’s three-way handshake verifies connections, retransmits lost packets, and puts data back in the right order. This can slash error rates to under 0.1%, even on shaky networks.
Some studies have even shown that TCP-based VPNs can achieve 15-20% higher reliability than UDP in high-packet-loss environments, preventing data corruption in over 95% of tests.
Of course, while protocols like TCP provide a reliable foundation, the actual security of your VPN tunnel boils down to strong cryptographic methods. For a closer look at how secure communication is maintained, you can explore various proven decryption techniques and cryptographic principles. Ultimately, TCP gives you a stable, error-free platform for any activity where data loss is simply not an option.
How to Switch and Test Your VPN Protocol
Knowing the difference between UDP and TCP is great, but putting that theory into practice is what really levels up your internet experience. The good news is that most modern VPNs, Tegant included, let you switch protocols right inside the app's settings. This gives you the hands-on control to optimize your connection for whatever you're doing—streaming, gaming, or breaking through a tough firewall.
Usually, you just need to pop into the settings, preferences, or connection menu in your VPN client. You'll find a dropdown list for the protocol, letting you easily toggle between options like OpenVPN (UDP), OpenVPN (TCP), or WireGuard (which runs on UDP).
A Step-by-Step Guide to Changing Your Protocol
While the exact menus might look a little different from one VPN to another, the basic steps are pretty much the same everywhere. You definitely don't need to be a network engineer to tweak these settings.
Here’s the typical drill for finding and changing your VPN protocol:
- Open Your VPN App: Fire up the client on your desktop or phone.
- Access the Settings Menu: Look for the gear icon, a "hamburger" menu (three lines), or a tab labeled "Settings" or "Preferences."
- Navigate to Connection or Protocol Settings: Inside settings, you're looking for a section about your connection. It might be called "Protocol," "Connection Type," or be tucked away in an "Advanced" tab.
- Select Your Desired Protocol: You'll see a list of what's available. Choose UDP for things that need speed or TCP for rock-solid reliability and getting past firewalls.
- Save and Reconnect: Hit save, disconnect from the VPN server, and then connect again. This will start a new session using the protocol you just picked.
Some more advanced apps even let you specify a port number, which is incredibly handy when using TCP. Setting TCP to port 443 is a classic trick for sneaking past network blocks that target VPNs.
Testing and Troubleshooting Common Scenarios
After you've switched protocols, it's time for the real test: does it actually fix your problem? The only way to know for sure is to try it out in the real world.
Think of it as basic troubleshooting. If something’s not working right, flicking the protocol switch is one of the quickest and most effective things you can try. If you're still stuck after trying these steps, our guide on why your VPN is not working has a bunch more in-depth solutions.
Key Insight: Switching between UDP and TCP isn’t just for optimization; it's a powerful troubleshooting tool. A connection that fails on UDP might work perfectly on TCP, and vice versa, depending entirely on the network conditions.
Let’s walk through two common problems and see how a quick protocol change can be the perfect fix.
Scenario 1: Constant Buffering During Streaming
- The Problem: You’re trying to watch a 4K movie, but the video keeps pausing to buffer. It’s infuriating. This is almost always a speed or data throughput issue.
- The Fix: Your VPN is probably on TCP. Jump into your settings, switch the protocol to UDP, and reconnect. UDP’s lower overhead means it prioritizes a smooth, fast data stream, which often gets rid of buffering completely.
Scenario 2: VPN Fails to Connect at School or Work
- The Problem: Your VPN connects instantly at home, but on your campus or office Wi-Fi, it just won't connect. This is a tell-tale sign of a firewall blocking standard VPN traffic.
- The Fix: That network is likely blocking UDP connections. Go into your VPN settings and switch over to TCP. For the best shot at success, choose port 443 if you have the option. This makes your VPN traffic look like regular, secure web browsing (HTTPS), letting it slide right past the network filters.
Digging into UDP vs. TCP VPNs: Your Questions Answered
When you start tweaking VPN settings, the whole UDP vs. TCP thing can feel a bit technical. Let's clear up some of the most common questions so you can feel confident you're making the right call. We'll stick to real-world impacts on security, speed, and getting around annoying network blocks.
Is UDP Less Secure Than TCP for a VPN?
This is a huge misconception, but the answer is a hard no. The choice between UDP and TCP has absolutely zero impact on how strong your VPN's encryption is.
Your actual security comes from the VPN protocol—like OpenVPN or WireGuard—and the powerful encryption ciphers they use to scramble your data. UDP and TCP are just the delivery methods. They're the couriers, not the security guards.
Think of it like this: your data is locked inside a super-secure armored vault (that’s the encryption). Whether you ship that vault on a lightning-fast race car (UDP) or a slow, methodical armored truck (TCP), the vault itself is just as tough to crack. TCP's reliability checks are about making sure the package arrives intact (data integrity), not about protecting what's inside (cryptographic security).
Why Do Most VPN Providers Default to UDP?
There's a good reason why nearly every VPN service, Tegant included, defaults to UDP. For most people and most online activities, it simply delivers the best mix of speed and performance.
Whether you're streaming, gaming, browsing, or on a video call, UDP’s lightweight design means a faster, less laggy experience. It doesn't waste time waiting for a confirmation receipt for every single piece of data it sends. This "fire-and-forget" approach avoids the slowdowns that can bog down a TCP connection.
For the average user, the tiny, often unnoticeable risk of a dropped data packet is a fantastic trade-off for a connection that feels significantly snappier.
Can I Use TCP to Access Streaming Services Blocked on My Network?
Absolutely. This is one of TCP's biggest superpowers, especially when you're stuck on a restrictive network.
Lots of firewalls—think schools, corporate offices, or countries with strict censorship—are set up to block unrecognized VPN traffic. But they almost never block traffic on TCP port 443. Why? Because that’s the port used for standard, secure HTTPS web browsing, the kind you use to access pretty much any modern website.
By setting your VPN to use TCP on port 443, you can cleverly disguise your VPN activity as normal web traffic. It just blends in, slipping right past firewalls that would otherwise shut down your access to streaming sites or other blocked apps.
Which Protocol Is Better for Mobile Devices?
For phones and tablets, UDP is almost always the better choice. Mobile connections are constantly in flux, hopping between different Wi-Fi networks and cellular towers.
TCP, with its rigid, session-based structure, really struggles with these handoffs. When your phone switches from Wi-Fi to 4G, a TCP connection might break and need to be completely re-established, causing frustrating interruptions.
UDP’s connectionless design, on the other hand, handles these network changes beautifully. It doesn't care about maintaining a formal session, so it just keeps sending data packets without skipping a beat. This leads to a much more stable and consistent experience when you're on the move.
